[?SG] EVERSOLO DMP-A6 Music Streamer

(>‿◠)✌ SAM AUDIO

? OFFICIAL EVERSOLO DEALER - 1 Year Local Warranty & Aftersales Support

? Receive within 3 Days - Well packaged from SG warehouse

? Responsive reply - We strive to reply within 5 mins

?️ Visit Us @ Sim Lim Sqr #01-56, S188504 - Demo units available (Lvl 1 Beside Escalator)

--

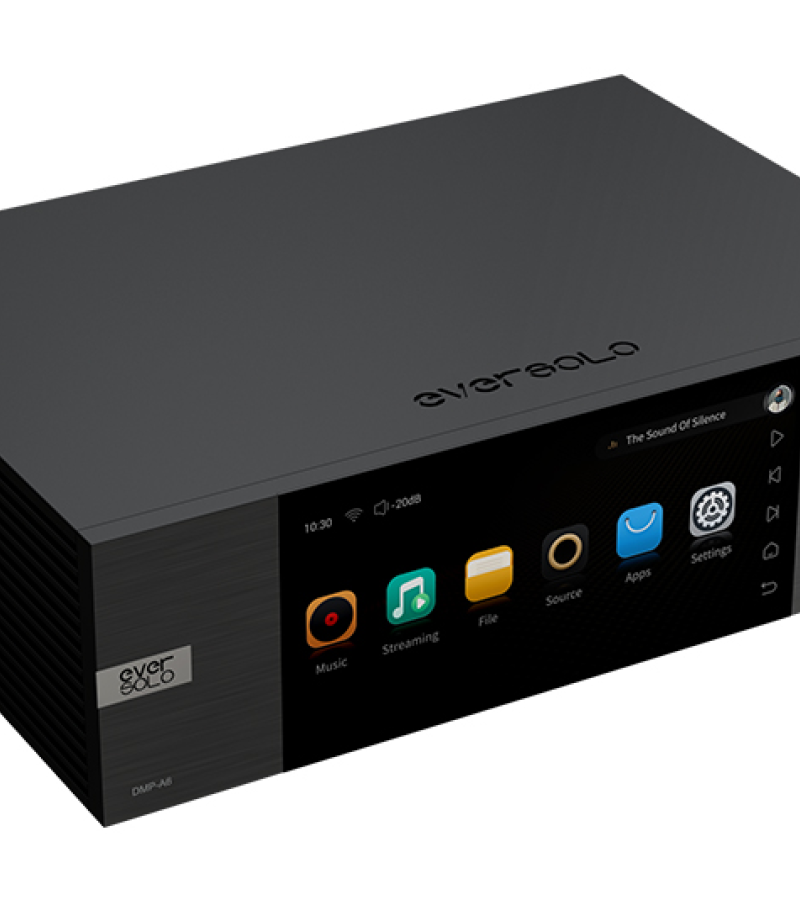

EVERSOLO DMP-A6 Streamer

--

Functional overview:

> Solid aluminium alloy chassis, brushed panel.

> Quad-core ARM Cortex-A55 professional processor.

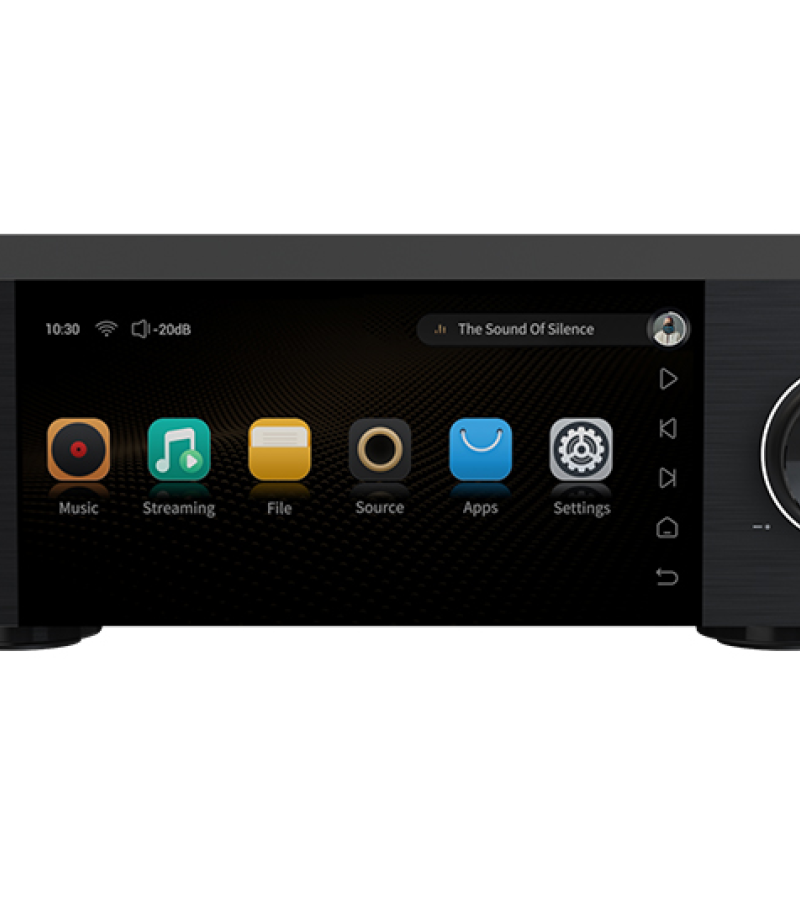

> 6" large LCD colour touchscreen, easy control.

> Based on Android 11, deeply tailored system.

> 4GDDR+32GeMMC large memory for masses of applications.

> Support M.2 NVME 3.0 SSD (not included), up to 4TB.

> 2xES9038Q2M DAC for independent stereo decoding.

> Support DSD512 Native, PCM768KHz@32Bit, MQA full decoding.

> The 3rd generation XU316 for higher performance and processing speed.

> Low-jitter dual clock synchronous processing with higher accuracy.

> Fully balanced circuit, XLR balanced and RCA single-ended hi-fi pre-out.

> 2x DOH chips, support HDMI DSD Native and D2P multi-channel output(Up to 5.1).

> Qualcomm QCC5125 Bluetooth 5.0 module with APTX HD.

> Low noise, high quality power supply, providing pure power source for audio circuits.

> Support mastering audio formats DSD (.dsf/.dff/.ios/.dst), APE, FLAC, WAV, MQA, etc.

> Support 2-channel and Multi-channel Gapless playback(FLAC,WAV)

> Personalised music management, lyric matching and music data matching.

> EOS audio engine developed by Eversolo, globally bypassing SRC restrictions.

> Support Direct audio in 3rd party APPs (Apple Music hi-res direct output).

> Full decoding and rendering support for MQA on Optical, Coaxial and USB input etc.

> Support USB, Optical, Coaxial, HDMI digital audio Bit-perfect output.

> Support external USB optical drive for CD disc playback and CD ripping.

> Music services Tidal, Qobuz, Highresaudio, Amazon etc.

> Support Spotify Connect, Tidal Connect, etc.

> Support music playback from Air Play2 and DLNA.

> Support NFS, SMB, Web DAV, UPnP protocols to access storage devices shared in the LAN.

> Support built-in SMB network media sharing service for easy local media sharing.

> Exclusive mobile APP for Android/IOS mobile phones and tablets.

--

Specifications:

> Model: EVERSOLO DMP-A6

> Display: 6" LCD touchscreen

> Internal Memory: 4GDDR4 +32GeMMC

> DAC: ES 9038Q2M*2

> Audio Processor: XMOS XU316

> Op-amp Chip: OPA1642

> Power Supply: Low noise, high quality switching power supplies

> SSD: M.2 NVME 3.0 2280 protocol, up to 4TB

> USB-A Port: USB3.0*2

> Ethernet: RJ-45(10/100/1000Mbps)

> WiFi: WiFi 2.4G+5G dual band

> Playback and DAC Decoding: Support up to stereo DSD512, PCM 768KHz 32Bit, MQA

> Music Service: Tidal, Qobuz, Highresaudio, Amazon, WebDAV, UPnP

> Streaming: Air Play, DLNA, Spotify, Tidal Connect, Qobuz Connect etc.

> Bluetooth Audio Input: BLuetooth BT5.0, support SBC/AAC/aptX/aptX LL/aptX HD/LDAC

> USB-C Audio Input: USB Audio Compatibility: Windows (7, 10), Mac, Android, IOS. Support up to stereo DSD512, PCM 768KHz 32Bit, MQA

> Optical/Coaxial Audio Input: Support up to stereo PCM 192KHz 24Bit, DSD64 Dop, MQA

> Optical/Coaxial Audio Output: Support up to stereo PCM 192KHz 24Bit, DSD64 Dop, MQA

> HDMI Audio Output: DSD64 Native multi-channel/PCM192KHz multichannel raw output(Up to 5.1)

> Control Method: Mobile App，Touch screen control

> XLR Output Audio Characteristics

> Output level: 5.2V

> Frequency response: 20Hz~20KHz(±0. 15dB)

> Dynamic range: > 128dB

> SNR: >128dB

> THD+N: <0.00009%(-120dB) @A-wt

> Crosstalk: >-125dB

> RCA Output Audio Characteristics

> Output level: 2.6V

> Frequency response: 20Hz~20KHz (±0. 2dB)

> Dynamic range: > 124dB

> SNR: >124dB

> THD+N: <0.00011%(-119dB)@A-WT

> Crosstalk: >-124dB

> PSU: AC 110~240V 50/60Hz

> Rated Power: 13W

> DimensionsL 187mm* W 270mm* H 90mm

> Packing List: Power cable*1, USB cable*1，Screwdriver*1，user manual*1
